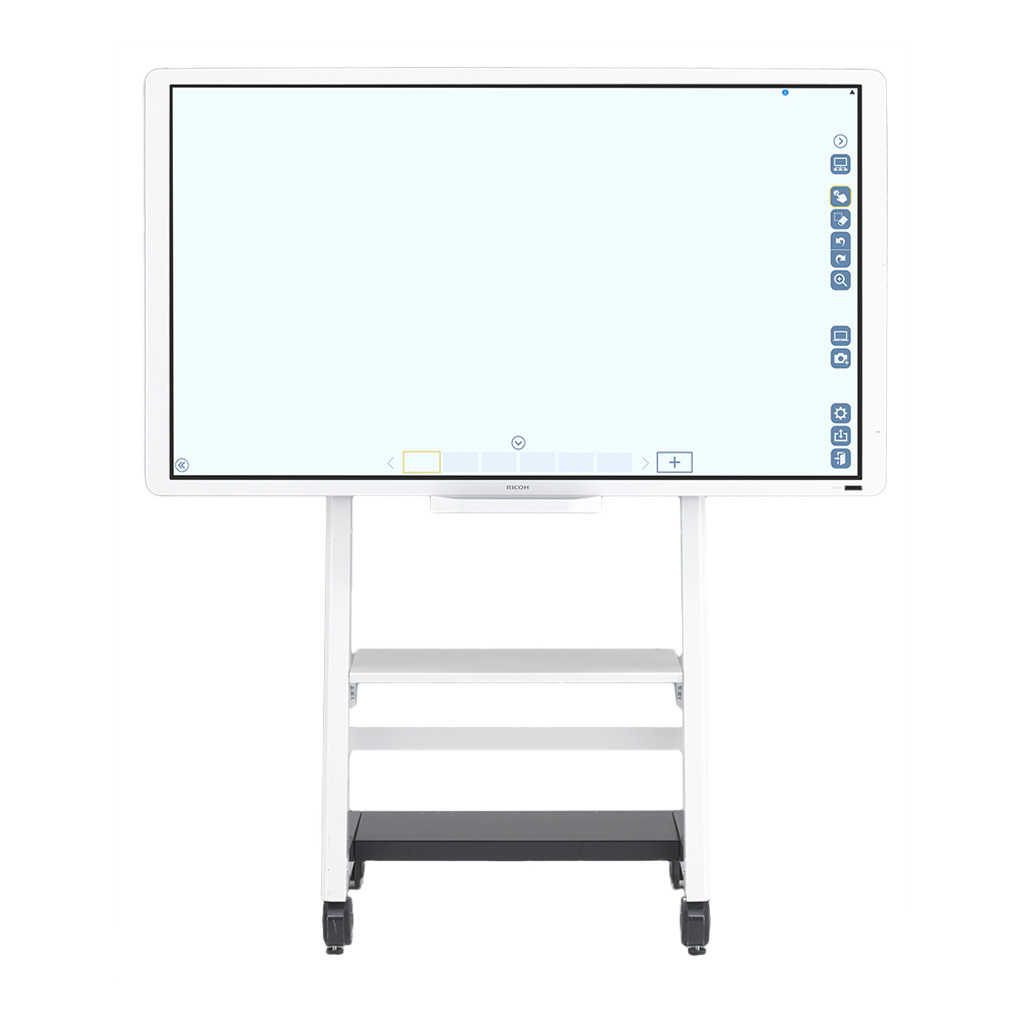

IWB D6510 Interactive whiteboard

65-inch touchscreen
1,920 x 1,080 pixels
350 cd/m² brightness
Optional remote connection

Speed up approvals and improve alignment between teams

Make team meetings productive and outcomes-oriented with this all-in-one collaboration tool. It’s offers flexible options to connect, whether you’re in the same room in another country.

Keep projects on track with an easier way to approve plans, documents and more. Interactive whiteboards offer a place where everyone can share their thoughts in real-time, no matter where they are. Easily connect via Bluetooth or different media to save time and hassle. Add on Ricoh Streamline NX to limit device access and keep information secure. The portable design can hang in your meeting room or act as a tabletop for brainstorming.

Real time collaboration
Edit and mark documents directly on the whiteboard. Multiple devices can connect for support across locations.
Vibrant visuals
Over 1 billion colours on display.
Simple connectivity
Start collaborating instantly with no software. Connect devices with WiFi, VGA, HDMI or USB.
Share results easily
Print or share results with PDFs that can be printed or sent to email, USB or directly to your office folders, network or on the cloud.

Specifications

Màn hình điều khiển

1 x main switch
7 x tact switch

Đi kèm máy

Touch pen
1 pcs

Note: There is also a felt-tipped touch pen available as an option, if additional pens are required.

Remote controller
Yes

Remote controller battery
2 x AAA batteries

Power cord
Yes

RGB cable
Yes

USB cable
Yes—for PC operation

HDMI cable
Yes

Bluetooth dongle
Yes

Quick guide and safety instructions
Yes

OPS slot
Yes x 1

Kích thước vật lý (Rộng x Sâu x Cao) - phần máy chính: 1,546 x 154 x 888 mm
Trọng lượng - thân máy chính: 57 kg

Loại bảng điều khiển

LCD multi touch-screen display

Kích cỡ bảng điều khiển

65 inches

Đèn nền

LED

Khu vực hiển thị có hiệu ứng (Rộng x Cao)

1,428.48 x 803.52 mm

Độ phân giải

1,920 x 1,080 pixels

Tái tạo màu sắc

1.07 billion colours maximum

Nhiệt độ màu sắc

11,000 K—cool
6,500 K—warm
9,300 K—neutral
5,000 K—low blue light

Độ sáng

350 cd/m²

Tỷ lệ khung hình

16:9

Độ tương phản

4000:1

Cài đặt hiển thị

Landscape orientation, Picture Mode—including Low Blue Light Mode, Backlight, Contrast, Brightness, Chroma, Phase, Sharpness, Colour temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio Source PAP Setting, Aspect, Adjust screen, Touch feature, Language, Power Save Control Setting, Touch control settings, Set monitor ID, Advanced information

Khoảng cách điểm ảnh

0.744 mm

Tốc độ phản hồi

8 ms

Góc xem (Ngang/Dọc)

Left and right 178 degrees, up and down 178 degrees

Âm thanh

Input
1 x Line 3.5 mm

Output
1 x speaker out

Video

Video input
1 x VGA
1 x HDMI
1 x DVI-D
1 x DisplayPort

Video output
1 x DisplayPort

Micro

Configuration
Built-in

Mic sensitivity
-28±3 dB

Signal to noise ratio
58 dB

Maximum input level
110 dB

Maximum pickup distance
5 m

Công nghệ cảm ứng: ShadowSense
Điểm chạm cảm ứng: 10 points maximum—four points with finger
Độ phân giải cảm ứng: 80 pt/sec—1,920 x 1,080 spatial resolution
Đầu ra cảm ứng: USB 2.0 Type B—not available when controller is installed
Bút điện tử tự nhận diện hệ thống: Radio frequency transmission
Tấm kính màn hình cảm ứng: 3 mm anti-glare

Giao diện - chuẩn

Control
1 x serial RS-232C input
1 x serial RS-232C output
2 x USB 2.0 Type B—for touch control

USB Hub 1
2 x USB 2.0 Type A—for Bluetooth dongle

USB Hub 2
4 x USB 3.0 Type A

Bluetooth
Bluetooth v2.1+EDR v3.0, v4.0

Open Pluggable Specification (OPS) controller slot
1 slot with detachable cover

Giao diện - tùy chọn

With Ricoh IWB controllers
10Base-T/100Base-Tx/1000Base-T (Wired LAN)
IEEE 802.11a/b/g/n (Wireless LAN)

Remote connection
Allows real-time sharing of content and drawings.
Remote connection is available in the same network (intranet) and VPN environments.

Windows

Multi-touch sensor
Windows 7—Ultimate, Professional, Home Premium
Windows Embedded 7—Standard
Windows 8—Windows 8, Pro, Enterprise
Windows Embedded 8—Standard
Windows 8.1—Windows 8.1, Pro, Enterprise
Windows 10—Home, Pro, Enterprise, IoT

Single-touch sensor
Windows 7—Home Basic

RICOH Interactive Whiteboard controller Type 1 (optional)
Windows Embedded Standard 8

RICOH OS-free Interactive Whiteboard controller Type 1 (optional)
Windows 7—must be installed after setup at customer site

Macintosh

Mac OS X 10.10–10.12—single-touch sensor

Ngôn ngữ hỗ trợ
