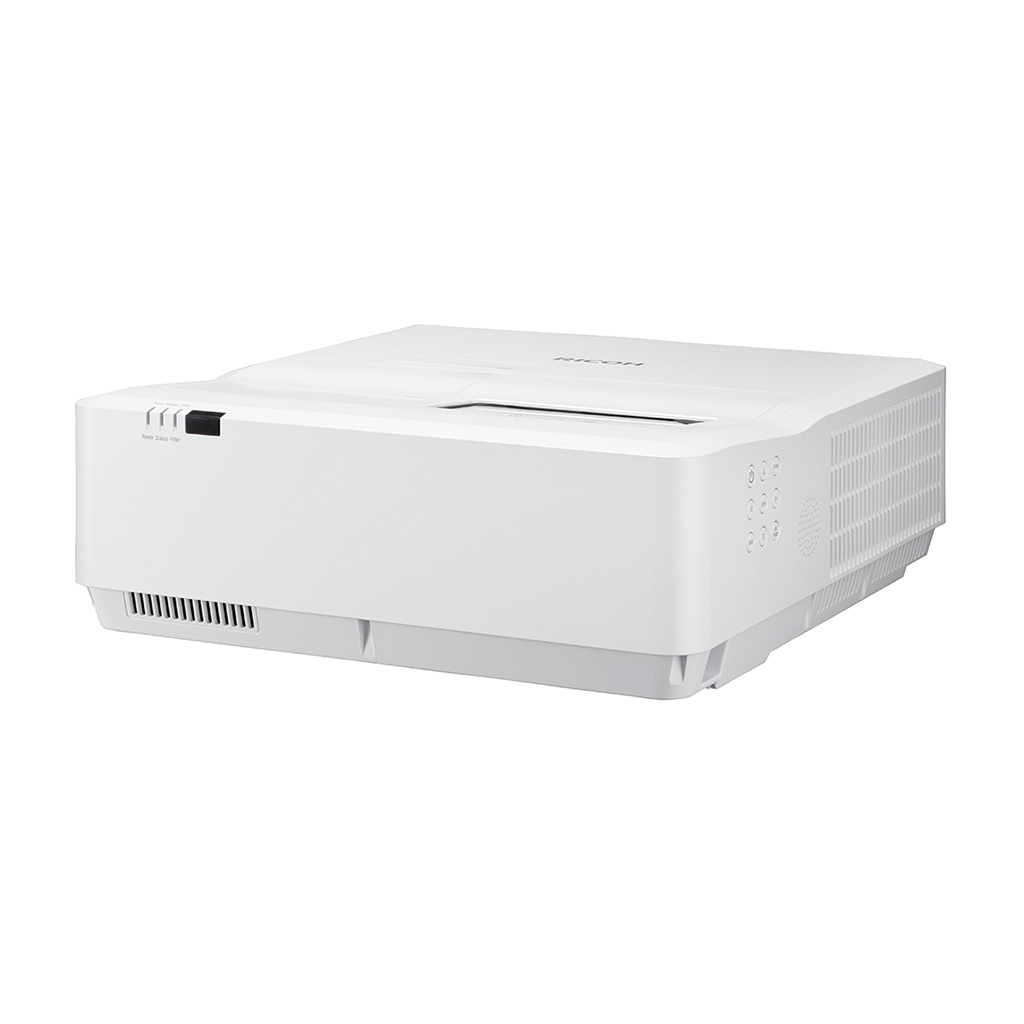

PJ WXC4660 4,000-lumen ultra short-throw projector

  • 1,280 x 800 pixels (WXGA)
  • HLD LED light source
  • 70–130-inch projection size
  • 20,000 hours light source life

Shine a spotlight on your best ideas with this ultra-short throw projector

Deliver impressive images, presentations and movies with attention-getting projection. The PJ WXC4660 is an Ultra Short Throw projector with an HLD (High Lumen Density) LED light source technology ensuring 20,000h extremely long life with reduced electricity consumption. Impressive image quality makes this model a perfect fit for mid-sized venues like meeting rooms, board rooms, classrooms and auditoriums. Thanks to the maintenance-free concept (no lamp replacement), the device could be used for digital signage as well.

  1. Make a lasting impact
    Present with confidence knowing every presentation is displayed in bright, breathtaking colour without delays or unnecessary distractions. Because it uses advanced 3LCD technology with an HLD (High Lumen Density) LED light source, the RICOH PJ WXC4660 Ultra Short Throw Projector can project images for 20,000 hours without any image degradation, replacement lamps or other maintenance.
  2. Get closer to lifelike images
    Transform any room into a personal showcase. Place the PJ WXC4660 just inches (29 inches maximum) from the projection surface to save space while making your message the centre of attention. This lets you showcase your work on the big screen (130 inches diagonally) without your shadow getting in the way. With 360-degree projection, you can orient the projector in any direction, even when ceiling mounted.
  3. Make your point loud and clear
    Help your message stand out. Project in brilliant colours and sharp, concise text in widescreen format. The PJ WXC4660 delivers impressive high-definition visuals at up to 4,000 lumens with up to 1,280 x 800 WXGA resolution and a 500:1 contrast ratio. You can also adjust the accompanying audio to meet the unique demands of the presentation, space and audience.
  4. Operate with ease
    With its LED technology, the projector displays brilliant visuals immediately. It shuts down just as quickly, so there's no ambient noise during cool down. When operating, it runs quietly at only 37.5 dB (Standard Mode) and 33.5 dB (Eco Mode). It also runs at lower temperatures than mercury lamp projectors, so both the projector and your audience stays cool.

Download PDF Brochure


Specifications

Loại máy chiếu
Ultra short throw
Đi kèm máy

Cables
RGB cable
Power cable

Remote control
Standard

Battery for remote control
Included

CD-ROM content
User manual
Projector Management Utility

Quick start guide
Included

Warranty card
Included

Kích thước vật lý (Rộng x Sâu x Cao) - phần máy chính
449 x 425 x 151 mm
Trọng lượng - thân máy chính
10.9 kg
Hệ thống chiếu
3LCD
Độ tương phản
500:1—Native
2,500,000:1—High Contrast Mode
Độ sáng
4,000 lumens
Độ phân giải
1,280 x 800 pixels (WXGA)
Nguồn sáng
HLD LED—yellow, LED—blue
Tuổi thọ nguồn sáng
20,000h
Loại ống kính
Built-in
Độ dài tiêu cự ống kính
4.92–5.18 mm
Khẩu độ ống kín
1.78–1.83
Loại thu-phóng
Manual
Tỷ lệ thu-phóng
1.05x
Tính đồng nhất
80%—standard, 70%—minimum
Phương pháp lấy nét
Manual
Tái tạo màu sắc
1,073,000,000 colours
Kích thước chiếu
70–130 inches
Khoảng cách chiếu
0.4–0.8 m
Tỷ lệ chiếu
0.27–0.29
Góc nghiêng
1.6 degrees
Điều chỉnh ổng kính
Vertical +/- 3%
Horizontal +/- 2%
Chỉnh sửa góc khung hình
Manual
Vertical +/- 5 degrees
Horizontal +/- 5 degrees
Hệ thống điều khiển
Crestron, PJ Link, AMX, Extron
Loa
10 W stereo
Các tính năng khác được hỗ trợ
Four corner keystone, Pincushion, 360-degree projection, Colour adjustment, Auto ceiling, Network projection, 9-key control keypad, Filter
Giao diện - chuẩn
Connection terminals
Computer-in x 2
Video-in x 1
HDMI (MHL) x 1
HDMI x 1
USB Type A x 1
USB Type B x 1
LAN x 1
Audio-in x 2
Monitor-out x 1
Audio out x 1
RS-232C x 1
Ngôn ngữ hỗ trợ
Menu
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Swedish, Polish, Turkish, Dutch, Danish, Norwegian, Arabic, Indonesian, Thai, Korean

Quick Start Guide
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Arabic

User manual
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Swedish, Polish, Turkish, Dutch, Danish, Norwegian, Arabic, Indonesian, Thai, Korean
Nguồn điện
100–240 V
Mức độ tiêu thụ điện

408 W—Maximum
286 W—Eco Mode
0.5 W or less—Standby Mode
2 W or less—Network Standby Mode

Note: Power consumption measured at 240 V.

Mức công suất âm thanh
37.5 dB(A)—Normal
33.5 dB(A)—Eco Mode
Các tiêu chuẩn môi trường
RoHS
REACH
ErP (Lot 6)
EU Battery Directive (2006/66/EC)
Packaging and Packaging Waste Directive (94/62/EC)
WEEE
Chuẩn an toàn
CE Marking
TUV Mark
Tiêu chuẩn tương thích điện từ (EMC)
EMC Directive
Australia/NZ EMC (C-Tick/RCM)
EN62311 (CE)
